GENERAL

     Maximum Pressures............Refer to Pressure Range Table
     Media Compativility..........Air and non-corrosive gases
     Pressure Range...............0 to 10, 50, 200, 700, 3000mmH2O
                                  or Equivalent, up to 150 PSI

   ELECTRICAL

     Power Supply.................24VDC,110/220VAC 60Hz(OPTION)
     Connection...................Scerw terminal block
     Display......................4 Digit LED
     Warm-up Time.................10 minutes

   ELECTRICAL(Switches)

     Relay Contact................2 SPDT (NC - COM  - NO)
     Contact Rating..............10A @ 110VAC, 6A @ 250VAC
     Connection...................Screw terminal block
     Level Setting................Adjustable HIGH & Low level

   ELECTRICAL(Transmitter )

     Connections..................Screw terminal block
     Output Signal................4-20 mA DC limited at 30mA DC
     Loop Resistanc...............0-1100 ohms
     Zero and Span Adjustment.....Panel Adjustable

   PERFORMANCE AT 23℃

     Zero Output..................4 mA
     Full Span Output.............20 mA
     Accuracy...................  ±0.25% FS (Includes Linearity,
                                  Hysteresis & Repeatability)
     Operating Temperature........0 to 50℃

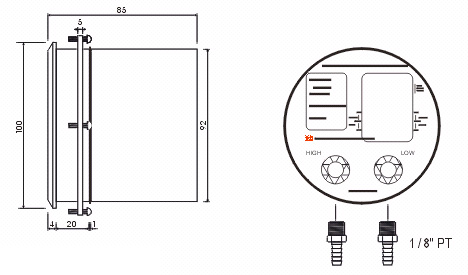

   MECHANICAL

     Pressure Connections.........1/8" PT female
     Materials....................Aluminum Case

   STANDARD ACCESSORIES

     Two(2)  1/8"PT plues for duplicate / Snapring
     Mounting ring, four(4) mounting screws
