PHYSICAL DATA



Ranges:
    O2: 0-21%; CO: 0-1999 ppm; CO2: 0-99.9%; Temp. (Flue and nett): 32-1112°F
(0-600°C); Efficiency: 0-99.9%; Poison Index: 0-99.9%; Excess Air: 0-infinite.
Accuracy:    O2: ±0.2%; CO:±5% rdg.; CO2:±0.3% of rdg.; Temp.: ±5°F (± 2°
C), 0.3% of rdg.; Efficiency: ±1.0% of rdg.; Poison Index: ±1.0% of rdg.;
Excess Air: ±0.2%
Operating Temperature:    32 to 104°F (0 to 40°C)

Resolution:  O2: 0.1%; CO: 1 ppm; CO2: 0.1%; Temp.: 1.0° F/C; Efficiency,
Poison Index, and Excess Air: 0.1%.

Pre-programmed Fuels:  Natural gas, Town gas, Light oil, LPG, Propane, Butane,
 Kinsale gas, and Gascor.

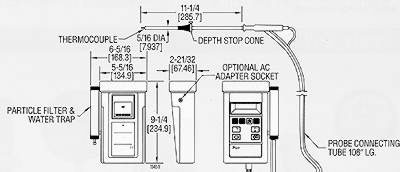

Probe:  11¼" (28.6 cm) length, stainless steel, Type K thermocouple, 9 ft (3
m) neoprene hose.
Power:    Four AA size alkaline batteries.


Battery Life:  >6 hours fully charged.
Weight:  2.2 lbs (1 kg).

STOCKED MODELS in bold
Model Number 1206 Combustion Analyzer........................
Accessories
NO. 1206-1, Infrared Printer..................................
NO. 1206-5, 110 VAC Nicad Battery Charger.....................
NO. 1206-51E, 220 VAC Nicad Battery Charger...................
