PHYSICAL DATA


GENERAL


Media:    Air
Ranges:    0-200, 0-1000, 0-3000, 0-12,000 FPM (field selectable: referenced to
standard conditions)

ELECTRICAL


Power Supply:    18-24 VAC, 22-28 VDC
Output Signal:    4-20 mA DC
Loop Resistance:    0-300 OHMS
Current Consumption:    250 mA Maximum
Warm-up Time:    3 to 5 minutes

PERFORMANCE


Zero Output:    4 mA
Full Span Output:    20 mA
ACCURACY:    (% of F.S.)
0-200 fpm range    ±5% @ 32-180°F
±9% @ 0-32°F or 180-200°F

0-1000, 0-3000 or
0-12,000 fpm ranges    ±2% @ 32-180°F
±6% @ 0-32 or 180-200°F

ENVIRONMENTAL


Temperature Ranges:    Operating, -32 to 160°F
Storage, 0 to 200°F

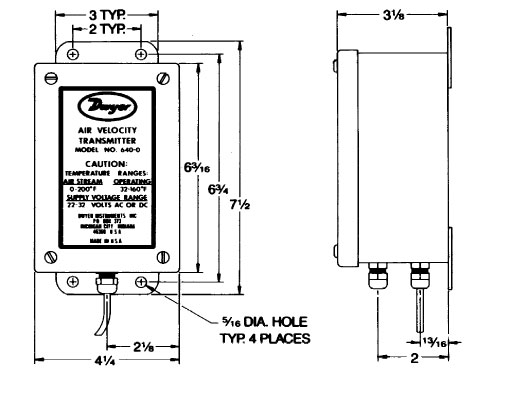

MECHANICAL


Weight:    3 lbs
Probe length:    12 inches
Cable length:    6 feet

STOCKED MODELS.................................
640-0 Air Velocity transmitter..........................
A-398 Probe extension adapter.......................
