PHYSICAL DATA

Range:    0.04 to 10 fps (2x10-4 to .05 m/s)
Repeatability:    ±5% of setpoint
Accuracy:    ±2% mm in water at constant temperature
Setpoint:    Adjustable 0.04 to 10 fps (2x10-4 to .05 m/s)
Setpoint Drift:    0.5% of setpoint
Responses Time:    1-10 seconds
Viscosity Range:    1 to 300 centipoise
Supply voltage:    12 to 36 VDC
Consumption:    50 mA (nominal)
FET Switch Voltage:    36 VDC maximum
FET Switch Current:    100 mA maximum
FET Switch Output:    Selectable NO or NC states
Indication:    LED for flow status
Pressure Range:    150 psi (10 bar) @ 25°C, derated @ 1.667 psi (.113 bar) per
°C above 25°C
Process Temperature:    32 to 140°F 0 to 60°C)
Wetted Parts:    Polypropylene / Ryton or Polyvinyildene Flouride
Probe:    NEMA 4x, IP65

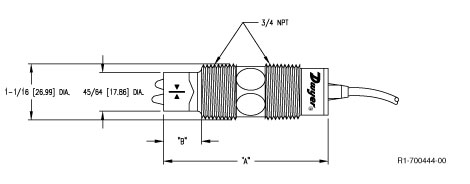

Mounting:    ¾" NPT (M) any orientation, for pipe sizes ¾" to 1 ½" use 3.0"
 (7.6 cm) length switch; for 2" to 16" pipe sizes use 4.5" (11.4 cm) length
switch
Cable:    22 gauge 3-wire, 8 ft (m) length
Electrical Connections:    Screw terminal for 12-22 AWG
