Magnehelic
PHYSICAL DATA
Service: Fluids compatiable with 316 stainless steel

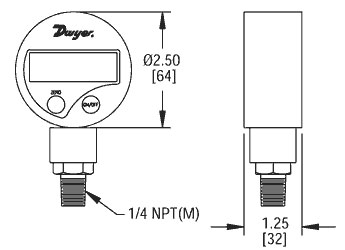

Size: 2½" diameter
Accuracy: 1.0% full scale
Pressure Connection: ¼" NPT(M)
Wetted Parts: Stainless steel
Housing: ABS plastic
Overpressure: 150% of full scale. or 6000 psi, whichever is lower
Operating Temperature Range: 30 to 120°F (-1to 48.9°C )
Power Supply: Two 3V lithium bateries.
Battery Life: 5 years in power saving mode
Weight: 4.5 oz. (128 g)
|
