PHYSICAL DATA
Temperature Ranges: 35 to 212°F (2 to 100°C).
Operating Temperature: 35 to 212°F (2 to 100°C) 35 to 130°F (2 to 54°C) for
PVC Fitting Option.
Maximum Pressure: 150 psi (10.34 bar).
Housing: 100% Polysulfone.
Wetted Parts: Polysulfone, Viton® O-Rings and Virgin Teflon® float, PTFE, FEP.
Accuracy: ±2% Full Scale @ 70º F (21.1º C) and 14.7 PSIA (1 ATM Absolute).
Inline Connections: 1" NPT(F).
Optional: 90° Polysulfone Elbow - 1" NPT (M).
Weight: 457 grams (1 lb.) (for 20 GPM range).

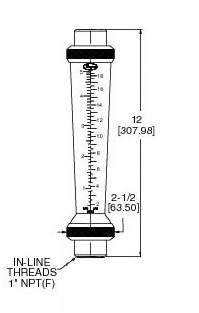

Dimensions all In-Line models: 12" (307.98) x 2 1/2" (63.50).
Dimensions Panel Mount: 15" (381) centers, 17" (431.80) x 2 15/16" (74.61).
Scale Length: 6" (152.40) - 7" (177.80), depending on model.
|
