PHYSICAL DATA

Voltage Input:    0-24 VDC
Max Operating Current:    400 mA
Electrical Connections:    Male spade type
Wetted Materials:    316 and 416 stainless steel, Viton O-rings
Maximum Pressure:    500 psig (34.45 bar)
Maximum Differential Pressure:    50 psid (3.45 bar)
Process Temperature Limits:    -40 to 174°F (-40 to 79°C)
Ambient Temperature Limits:    -40 to 130°F (-40 to 54°C)
Type of Operation:    Normally closed valve will close when de-energized

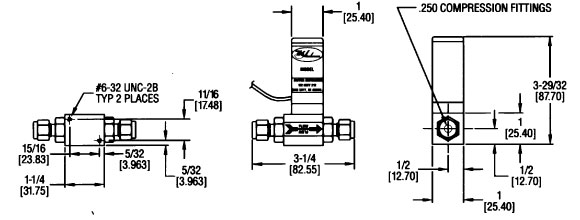

Connections:    ¼" compression fitting
Weight:    12 ounces (340 grams)






MODEL

NO.




ORIFICE

IN.(MM)




Cv




MAXIMUM FLOW*







AIR

SCFH(LPM)




WATH GPH

(CC/M)







SVP-1

SVP-2

SVP-3

SVP-4




0.020(0.51)

0.040(1.02)

0.055(1.40)

0.063(1.60)




0.009

0.033

0.055

0.068




7.4(3.5)

27.5(13)

45.6(21.5)

53(25)




2.0(125)

6.4(400)

11.1(700)

13.5(850)
