| The Digihelic® Controller just got better with the New Series DHII Differential Pressure Controller. The DHII takes all the fabulous features of the standard Digihelic® Pressure Controller and packages them in a robust NEMA 4 (IP66) housing.
The Digihelic® II Pressure Controller combines the 2 SPDT control relays, 4-20 mA process output and Modbus® communications with a large, brightly backlit 4 digit LCD display that can easily be seen from long distances. The electrical wiring has also been enhanced in the DHII with its detachable terminal blocks. The removable terminals allow the install to easily wire the terminal block outside the housing and then attach to the circuit board, reducing wiring difficulties and installation time on the process.
The Digihelic® II Differential Pressure Control in the new NEMA 4 (IP66) enclosure enables this product to be the perfect choice when mounting pressure controls outdoors in such applications as rooftop air handlers. This housing also makes it the ideal solution for surface mounting in clean rooms or facilities where water or a cleaning solution is utilized in maintaining plant cleanliness.
|
 |
| ACCESSORIES:
351-9 - Silver RS-232 to RS-485 converter with DB9F connector, includes 120 VAC to 12 VDC adapter.
MN-1 - Mini-Node™ RS-485 to USB converter.

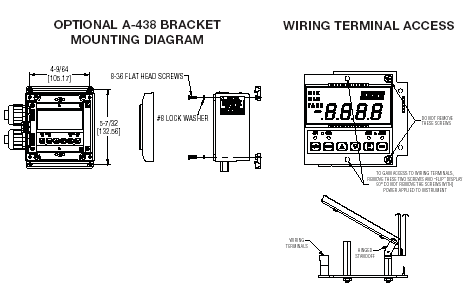

A-438 - Surface mounting bracket.
DIGIHELIC LINKS - Communication software CD.
A-465 - Flush mount space pressure sensor.
A-301 - Static pressure tip, for 1/4" metal tubing connection.
A-302 - Static pressure tip, for 3/16" and 1/8" ID plastic or rubber tubing.
A-303 - Portable static pressure tip, for 3/16" ID rubber or plastic tubing with 4" insertion.
A-414 - 316 SS clean room pressure sensor.
A-307 - Static pressure fitting, for 1/4" metal tubing connection.
A-308 - Static pressure fitting, for 3/16" and 1/8" ID plastic or rubber tubing.
A-417 - Static pressure pickup, for use in clean rooms, 100 micron filter picks up static pressure, stainless steel wall plate fits 2" x 4" electrical box, sealed with foam gasket, screws included. Barbed brass fitting holds 1/8" to 5/32" ID tubing.
A-418 - Static pressure pickup, room mount with Delta style plastic enclosure fits 2" x 4" electrical box, mesh screen hides static pressure pickup port, clean connection to 1/8" to 5/32" ID tubing and pressure sensor. Sealed with foam gasket, screws included.
A-419 - Static pressure pickup ceiling mount, plate rests on top of standard 3/4" thick ceiling tile while 100 micron filter faces down through 5/8" hole in tile, screws included for optional mounting to junction box, barbed fitting holds 1/8" to 5/32" ID tubing.
A-420 - Static pressure pickup for roof/outside mount, NEMA 4X (IP66) rated structure withstands harsh environmental elements, structure is 3-5/8" across and 2-1/2" deep, EMT conduit fitting is 1/2", pressure connection is brass barbed fitting for 1/4" tubing.
A-306-A - Outdoor static pressure sensor, provides average outdoor pressure signal for reference in building pressurization applications, includes sensor, 50 ft vinyl tubing, mounting bracket and hardware.
A-201 - Rubber tubing, 3/16" ID, 9 ft length.
A-202 - Rubber tubing, 3/16" ID, lengths to 50 ft, per ft.
A-203 - PVC tubing, 1/8" ID x 1/4" OD, per ft.
A-210 - Aluminum tubing, 1/4" OD, 5 ft length, 500 psi maximum pressure @ 200°F.
A-211 - Aluminum tubing, 1/4" OD, 50 ft length, 500 psi maximum pressure @ 200°F.
A-220 - Flexible vinyl tubing, clear 3/16" ID x 5/16" OD, lengths to 500 ft, per ft, 45 psi maximum pressure @ 73°F.
A-221 - Flexible vinyl tubing, clear 1/8" ID x 3/16" OD, lengths to 500 ft, per ft, 40 psi maximum pressure @ 165°F.
A-222 - Flexible vinyl tubing, clear .240" ID x .375" OD, lengths to 500 ft, per ft, 35 psi maximum pressure @ 73°F.
A-223 - Black polyethylene 1/8" ID 1/4" OD, 10 ft length, 200 psi maximum @ 140°F.
|
 |
| Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult Factory.
Housing Material: Aluminum, glass.
Accuracy: ±0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤2.5 in. w.c. = 2 psi; 5": 5 psi; 10": 5 psi; 25": 5 psi; 25": 5 psi; 50": 5 psi; 100": 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements: High Voltage Power = 100 to 240 VAC, 50 to 400 Hz or 132 to 240 VDC. Low Voltage Power = 24 VDC ±20%.
Power Consumption: Low Voltage Power = 24 VDC - 130 mA max. High Voltage Power = 100 to 240 VAC, 132 to 240 VDC - 7VA max.
Output Signal: 4-20 mA DC into 900 ohms max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (dampening set to 1).

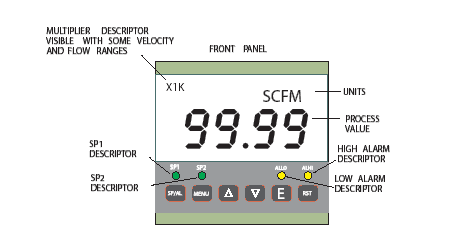

Display: 4 digit backlit LCD 0.6" height. LED indicators for set point and alarm status.
Electrical Connections: Euro type removable terminals blocks with watertight conduit fittings for 1/2" watertight conduit.
Process Connections: 1/8" female NPT.
Enclosure Rating: Designed to meet NEMA 4X (IP66).
Mounting Orientation: Mount unit in horizontal plane.

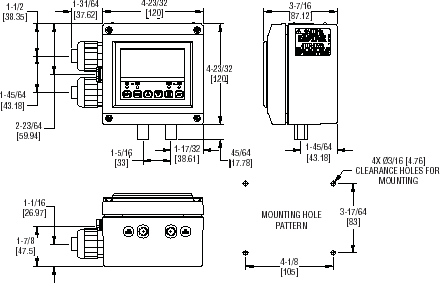

Size: 4.73" x 4.73" x 3.43" (120 x 120 x 87.1 mm).
Weight: 2 lb 10 oz (1.19 kg).
Serial Communications: Modbus® RTU, RS485, 9600 Baud.
Agency Approvals: CE and UL.
SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 8 Amps at 240 VAC resistive.
Set Point Adjustment: Adjustable via keypad on face. |
 |
 |
 |
 |
|
|
