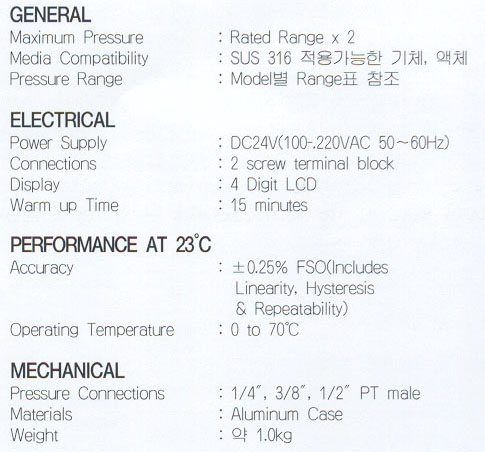

| GENERAL
Maximum Pressure Rated Range x 2
Media Compatibility SUS 316 적용가능한 기체, 액체

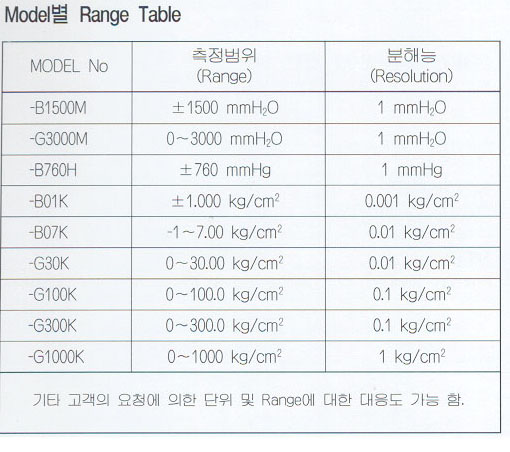

Pressure Range Model별 Range표 참조
ELECTRICAL
Power Supply DC24V(100-.220VAC 50~60Hz)

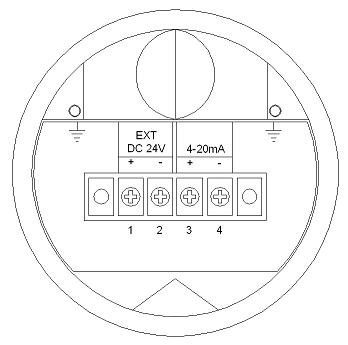

Connections 2 screw terminal block
Display 4 Digit LED
Warm up Time 15 minutes
PERFORMANCE AT 23℃
Accuracy ±0.25% FSO(Includes Linearity,
Hysteresis & Repeatability)
Operating Temperature 0 to 70℃

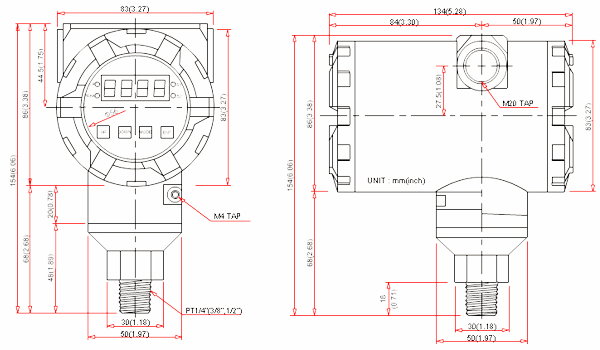

MECHANICAL
Pressure Connections 1/4", 3/8", 1/2"PT male
Materials Aluminum Case
Weight 약 1.0kg
|
 |
 |
 |
 |
 |
 |
 |
|
|
