Capsuhelic
PHYSICAL DATA
Ambient temperature range: 20° to 200°F. (-7° to 93°C).
Pressure Rating: -20" Hg to 500 psig. (-68 kPa to 34 bar).

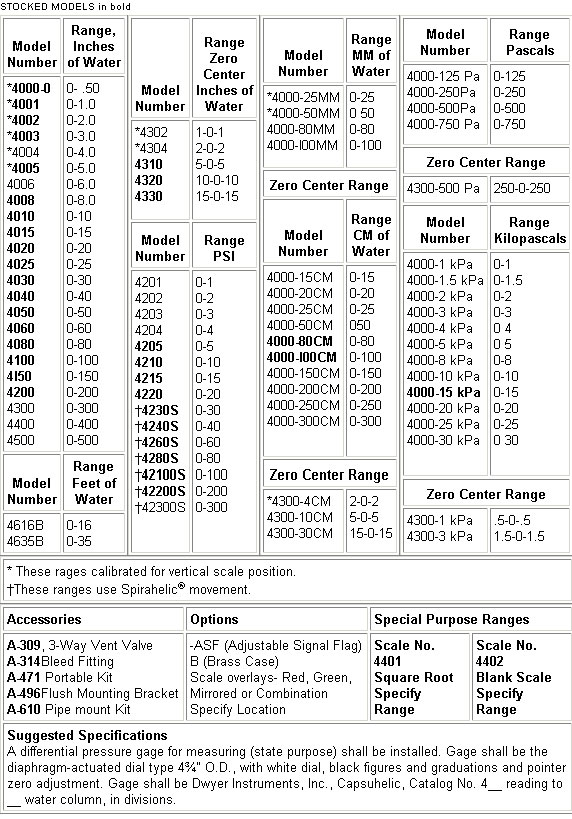

Standard Ranges: See chart below.
Accuracy: Plus or minus 3% of full scale at 70°F(21°C).
(2% on 4000S models, 4% on 4200, 4210, 4215, 4220, 4300, 4400, and 4500).
Housing: Die cast aluminum with impregnated hard coating, standard.
Optional forged brass housing is required for water or water based fluids.
For corrosive gases or liquids and for special diaphragms, contact the factory.
Exterior Finish:Dark gray.
Connections: ¼" NPT(F) high and, low pressure taps, duplicated -one pair top for
air and gas, and one pair bottom for liquids.
Standard Accessories: Two ¼" NPT plugs for duplicate pressure taps, four flush
mounting adapters with screws and four surface mounting screws.

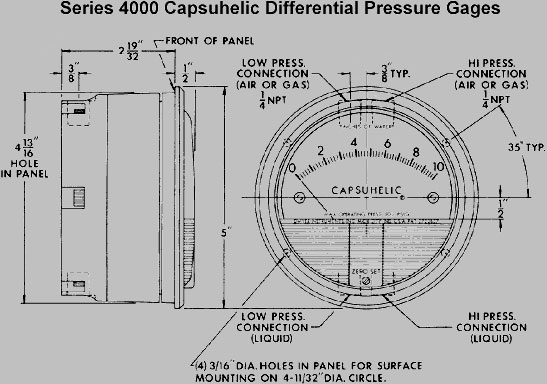

Dimensions: 5" (127 mm) diameter x 3 3/32" (78 mm) length.
Weight: 3 lbs., 3 oz. aluminum case; 7 lbs., 13 oz. (3.5 kg) brass case.
MOUNTING
Capsuhelic® gages may be flush mounted in a panel or surface mounted. Har |
