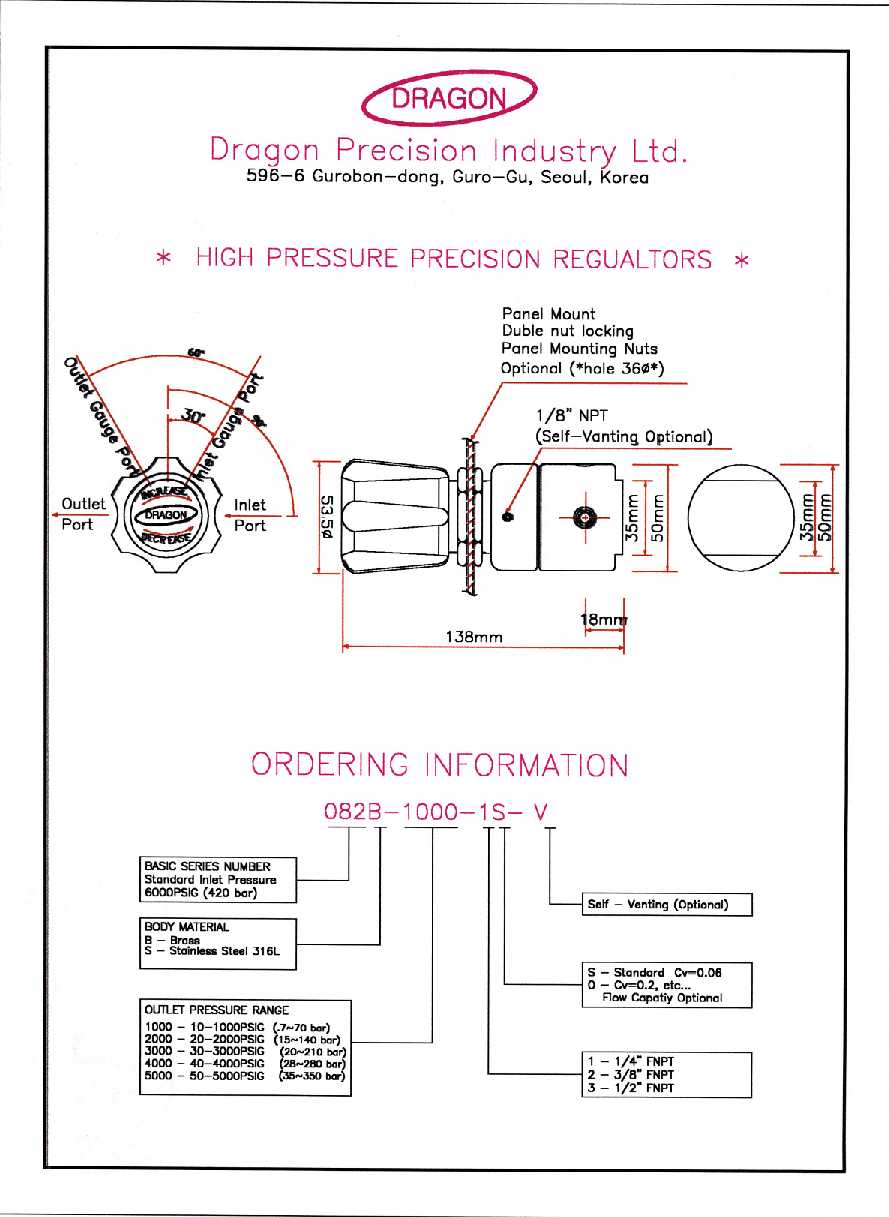

Model 082 Series All Stainless steel 316L의 재질로 제작된 제품이며
4-Ports, FNPT 1/4" 타입의 Regulators 입니다, 사용 압력은 Max. Inlet
Pressure 6000psig 이며, Outlet Pressure 1000psi, 2000psi, 3000psi,
4000psi의 압력을 사용할 수 있습니다.

Ports - FNPT 1/4"

Leak Rate Certification - to 2x10-8 atm cc/sec Helium available.

Body Materials - Model 082S Series Stainless steel 316L

Body Materials - Model 082B Series Forged Brass

Bonnet Materials - Nickel Plated Forged Brass(Stainless steel 316LOptional)

Diaphragm -

Valve - Stainless steel 316L

Valve Spring - Stainless steel 316L

Valve Seat - Teflon (Kel-F, Polyimide, etc.. Optional)

Inlet Pressure Ranges - 6000psig (420bar)

Self-Venting - Model 082S-XXXXX-XX-V (Self-Venting Optional)

Outlet Pressure Ranges - 4000psig(280bar)

Outlet Pressure Ranges - 3000psig(210bar)

Outlet Pressure Ranges - 2000psig(140bar)

Outlet Pressure Ranges - 1000psig(70bar)

Self-Vanting - Optional

Operating Temperature - 40°C - +70°C (-40°F - +165°F)

                     (+200°C - +540°C (+328°F - +1000°F) Optional

Flow Capacity - Cv=.06(Optional Cv= 0.2 etc..)
