GENERAL

      Maximum Pressures............2.0 X Rated Range
      Burst Pressures..............2.0 X Rated Range
      Media Compativility..........Clean, non-corrosive Liquids and Oil
      Range........................0 to 100M available

   ELECTRICAL

      Power Supply.................Ext. 12 ~ 35VDC
      Connection...................3 Leads including case ground
      Loop Resistance..............0 ~ 1100 ohms (Max 35VDC)
      Reverse Polarity Protection..YES
      Warm-up Time.................20 minutes

   PERFORMANCE(at 23℃)

      Zero Output..................4 mA
      Full Span Output.............20 mA
      Accuracy.....................±0.25% FS (Includes Linearity,
                                       Hysteresis & Repeatability)
      Operating Temperature........-10 ~ 50℃

   MECHANICAL

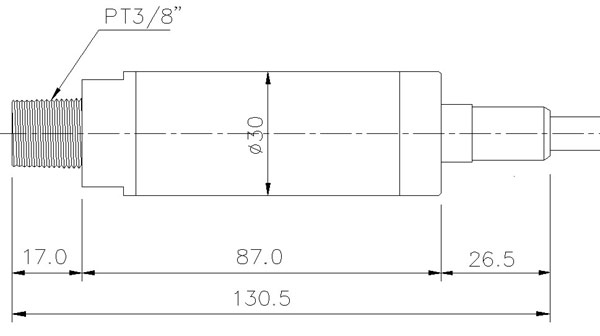

     Pressure Connections............PT 3/8" or 1/2" male
     Material in Contact with Media..Body  : 316 Stainless Steel
                                     Cable : Polyurethan(Teflon Option)
     Zero and Span Adjustment........None
